The CY-12C is a compact, handheld electrochemical oxygen analyzer designed for measuring oxygen concentration (O₂%) across a wide range (typically switchable between 0–5%, 0–50%, and 0–100%). It is marketed for industrial safety checks, oxygen concentrator verification, medical equipment testing (ventilators, anesthesia machines, incubators), confined-space monitoring, laboratory use, and general gas analysis.
Build, Design & What’s Included

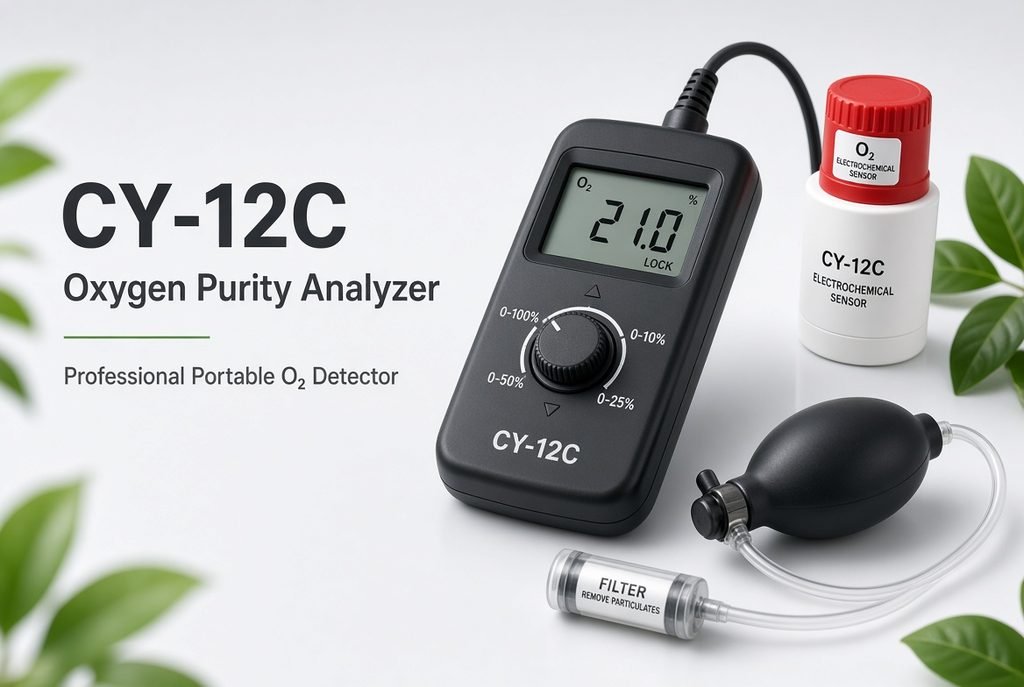

The unit is a solid black handheld meter (approximately 160 × 85 × 28 mm, ~150–200 g) with a clear 3½-digit LCD that reads oxygen percentage directly (shown reading normal ambient air at 21.0% in the product images). A rotary switch selects the measurement range and power. The sensor is a replaceable electrochemical (polarographic diaphragm) cell connected via a short cable. Sampling is manual: a black rubber bulb pump, clear tubing, and a small inline filter/water trap allow the user to draw gas samples over the sensor.
Accessories typically include the sensor, pump, tubing, filter, and (in some listings) a simple fabric carry bag. A 9V (6F22) battery is required but usually not included. The overall package is functional and no-frills — clearly an industrial/tool-style instrument rather than a premium medical device.
Key Specifications (from product data & consistent listings)
- Sensor: Electrochemical (platinum cathode / silver-silver chloride anode style)
- Range: 0–100% O₂ (with finer resolution on lower ranges)
- Resolution: Down to 0.01% on the lowest range
- Response time: ~5–10 seconds to 90% of final reading (at ~20°C)
- Accuracy: Roughly ±0.1–0.5% on lower ranges; wider tolerance (±1–3%) at higher concentrations (exact figures vary slightly by seller)
- Operating conditions: Typically –5°C to +50°C, ≤90% RH
- Power: Single 9V battery, claimed >500 hours / very low consumption (~4 mW)
- Sampling: Manual hand-pump style
Real-World Performance
In practice, the CY-12C is straightforward: turn it on, allow a short stabilization period (readings often drift downward initially as the sensor settles — this is normal), select the appropriate range, and pump sample gas across the sensor. Ambient air reliably reads near 20.9–21.0%, which is a good basic confidence check.
portable oxygen concentrators. It performs adequately for this purpose — identifying when output purity has dropped below expected levels (e.g., 90%+). It is also useful for quick industrial or safety checks (mines, tunnels, chemical processes, inert-gas blanketing, grain storage atmospheres, etc.). Response is reasonably fast for a low-cost electrochemical unit, and the long battery life is a genuine advantage for intermittent field use.
Limitations are important to understand:
- This is not a certified medical or laboratory-grade instrument. Accuracy is suitable for screening and routine checks, not for critical clinical decisions or regulatory compliance that requires traceable calibration.
- The electrochemical sensor has a finite life (typically 1–2 years of normal use; exposure to high O₂, certain contaminants, or drying out shortens it). Replacement sensors are available but add ongoing cost.
- Manual pumping requires technique for consistent results; flow rate and humidity can influence readings.
- Instructions are often poorly translated, and formal calibration (beyond ambient air zeroing) is basic.
- Some independent feedback notes occasional drift or the need for careful handling of the sensor.
Value Proposition
Priced typically in the $60–100 range on AliExpress (varies by seller and promotions), the CY-12C delivers solid utility for the money. Higher-end portable analyzers with longer sensor life, better documentation, data logging, or formal certifications cost several times more. For checking oxygen concentrators, basic industrial safety monitoring, educational use, or non-critical process verification, it offers a practical, portable solution.
Who Should Buy It?
Recommended for:
- Owners of oxygen concentrators who want an independent purity check
- Technicians doing routine industrial or confined-space oxygen monitoring
- Labs, schools, or workshops needing an affordable full-range O₂ meter
- Users who understand the limitations of a low-cost electrochemical sensor.
Not ideal for:
- Clinical decision-making or regulated medical applications
- Continuous long-term monitoring without sensor maintenance
- Users needing high precision (±0.1% or better) with formal traceability.
Bottom Line
The CY-12C is a capable, no-nonsense portable oxygen analyzer that punches above its price for everyday verification and safety checks. It is compact, long-running on a single 9V battery, and covers the full 0–100% range that many cheaper meters lack. Expect decent real-world performance for concentrator testing and industrial spot checks, but treat it as a practical tool rather than a precision laboratory instrument. Maintain the sensor properly and calibrate against ambient air regularly, and it will serve reliably for its intended purposes.
Overall rating: Strong value for non-critical oxygen purity measurement, a recommended budget professional tool when expectations are realistic.
